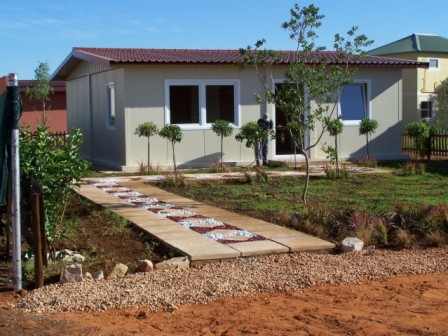

Housing System

SIMPlE & INNOVATIVE:

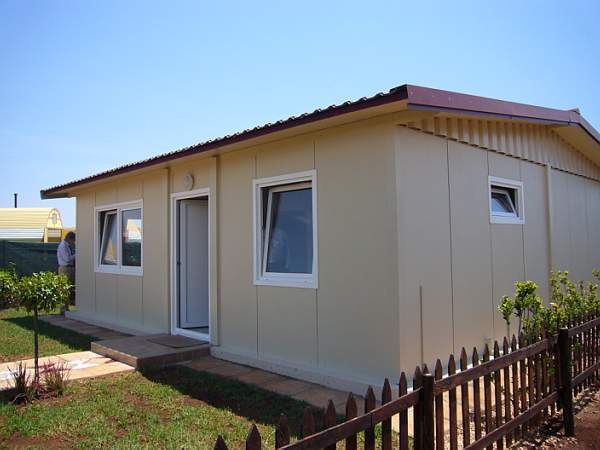

THE LOW-COST HOUSE

Public Housing

Apartments / Flats

Office Systems & Workshops

Administration Buildings & School Systems

Medical Centers

Industrial & Commercial Camp Systems

Barracks

Advantages of the System

• Perfect insulation for all climatic zones
• Solid & sophisticated construction
• High variability
• Quick assembly/disassembly
• Earthquake and Hurricane resistant (stability)
• Water-proof & Fire-resistant
• Insect resistant
• Extreme durability
• Extendable according to a building block
   system

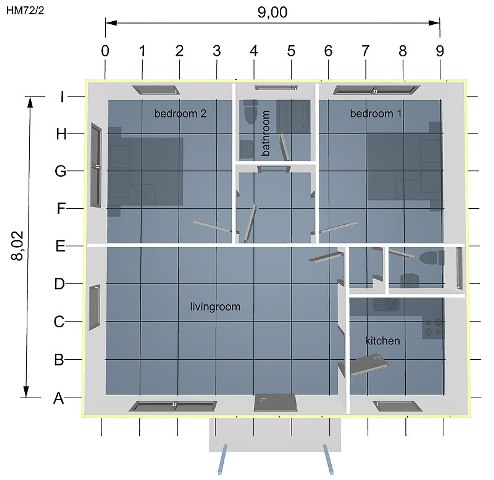

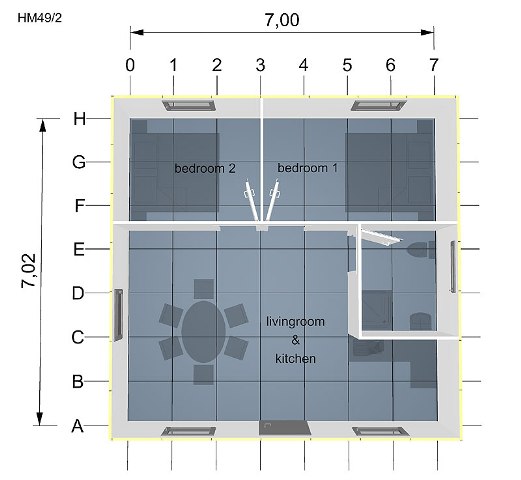

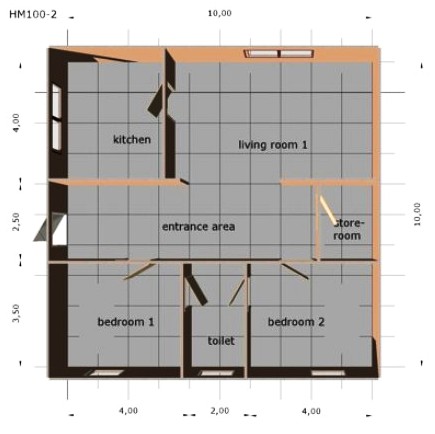

Housing Modules

• Prefabricated kit, rapidly and safely assembled

• Easily transportable, optimum utilisation of transport space

• Simple disassembly / can be   completely relocated

General Equipment
• Cable duct, installed on the ceiling
• Conduit, surface-mounted
• Front door with glass filling
• Inside door
• Windows, swivelling and tilting (plastic,
  double glazing) with grating (7 rods)
  fastened to the frame
• Electric supply through the outside wall.
  Our work begins at the house connection
  box
• Water supply, discharge through the
  outside wall. Our work begins at the house
  connection valve.
• Foundation plate provided by the
  customer as per our instructions.

Heating & Cooling Systems
• Quotation on request

Living Room
• light switch (outlet in the ceiling)
• light switch (external outlet)
• plug

Kitchen
• light switch (outlet in the ceiling)
• kitchen sink (stainless steel), cold/hot
  water
• boiler, cold/hot water
• electric distribution box
• plug (boiler)
• plug

Bathroom
• shower, cold/hot water
• washbowl, cold/hot water
• indoor plumbing
• light switch (outlet in the ceiling)
• plug

Execution Housing Modules :

Wall (inside and outside):       Thermowand 1000   ( 60 mm )  Valor-U =   0,39  W/m2K

Thermowand 1000  (120 mm )  Valor-U =   0,19  W/m2K

60 mm
or
120 mm

1000 mm

Standard colors outside:

RAL 1015      Light ivory
RAL 7035       Light grey
RAL 8011       Nut brown
RAL 9002       Grey white
RAL 9006       White aluminium
RAL 9010       Pure white

Standard colors inside:

RAL 9002       Grey white

Cover :            Thermowand 1000   ( 60 mm )  Valor-U =   0,39  W/m2K

60 mm

1000 mm

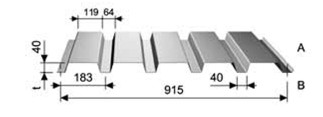

Roof:       T 40.1        Material  0,88 mm

Standard colors inside:

RAL 9002      Grey white

Standard colors :

RAL 9002       Grey white

Window:
PVC - under 60 mm / White
Rotational tilt
Double Glazing

Entrance:
PVC
Profile cylinder

Interior:
Honeycomb doors,
Wood - Mahogany

Basic principles of our system and part of this offer are:

Delivery of the wall, ceiling and roof panels, windows, exterior and interior doors.

Including flashings, fasteners and sealant.

Positions will be provided by customer on concrete slab

Technical Processing - Architecture and engineering drawings.
